Rich in features, the self-contained two-color model PSC-SR56N and one-color models PSC-G56N/PSC-S56N pyrometers offer a choice of four sighting methods, delivers high resolution fixed focus optics with small spot sizes, digital RS485 communication interface, analog 4 to 20mA output and a fast speed of response.
These thermometers are ideal for applications in induction heating, kilns, composites, sintering, steel and metals processing, vacuum furnaces and welding, as well as demanding research and development applications. The durable and compact companion stainless steel cooling jacket with integrated air purge stands up to even the harshest environments, and a number of innovative, ruggedly designed accessories are available. Optical and electronics parts are enclosed in rugged cylindrical stainless steel housings for guaranteed durability.

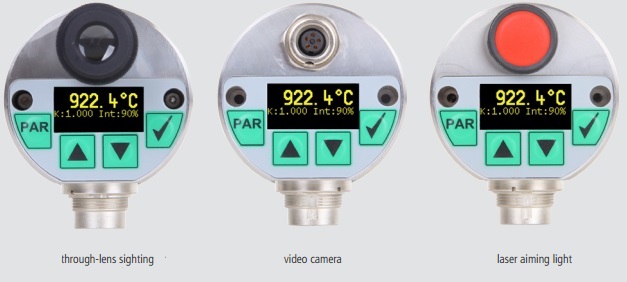

With five temperature ranges spanning from 500 to 3000°C, the PSC-56N series offers a choice of through-lens sighting, integrated red laser, video camera sighting, or an electronic viewfinder. The unique electronic viewfinder feature allows the user to look into the sensor’s viewfinder and observe a real-time colorized video image of the process under measurement. As with all Process Sensors two & one-color models, the PSC-SR56N Series can also be used as single wavelength pyrometer. The free PSC Spot software with optional USB cable for connection to RS485 output allows simple set up of IR thermometer parameters and records data in graphical, text or tabular format simple.
PSC-SR56NT
Temperature Range :- 500 to 3000°C
Spectral Response :- 0.7 – 1.1 µm (2-Color)
Min. Spot Size :- 5 mm
Response Time :- 5ms adjustable to 100 seconds
Method of Sighting :- Through lens
PSC-SR56NL
Temperature Range :- 500 to 3000°C
Spectral Response :- 0.7 – 1.1 µm (2-Color)
Min. Spot Size :- 2.5 mm
Response Time :- 5ms adjustable to 100 seconds
Method of Sighting :- Laser
PSC-SR56NV
Temperature Range :- 500 to 3000°C
Spectral Response :- 0.7 – 1.1 µm (2-Color)
Min. Spot Size :- 1.3 mm
Response Time :- 5ms adjustable to 100 seconds
Method of Sighting :- Video
PSC-SR56NEV
Temperature Range :- 500 to 3000°C
Spectral Response :- 0.7 – 1.1 µm (2-Color)
Min. Spot Size :- 1.3 mm
Response Time :- 5ms adjustable to 100 seconds
Method of Sighting :- Electronic Viewfinder (video inside viewfinder)
PSC-G56NT
Temperature Range :- 200 to 2500°C
Spectral Response :- 1.5 – 1.8 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Through lens
PSC-G56NL
Temperature Range :- 200 to 2500°C
Spectral Response :- 1.5 – 1.8 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Laser
PSC-G56NV
Temperature Range :- 200 to 2500°C
Spectral Response :- 1.5 – 1.8 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Video
PSC-G56NEV
Temperature Range :- 200 to 2500°C
Spectral Response :- 1.5 – 1.8 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Electronic Viewfinder (video inside viewfinder)
PSC-S56NT
Temperature Range :- 550 to 3000°C
Spectral Response :- 0.8 – 1.1 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Through lens
PSC-S56NL
Temperature Range :- 550 to 3000°C
Spectral Response :- 0.8 – 1.1 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Laser
PSC-S56NV
Temperature Range :- 550 to 3000°C
Spectral Response :- 0.8 – 1.1 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Video
PSC-S56NEV
Temperature Range :- 550 to 3000°C
Spectral Response :- 0.8 – 1.1 µm (1-color)
Min. Spot Size :- 1.3 mm
Response Time :- 2ms adjustable to 100s
Method of Sighting :- Electronic Viewfinder (video inside viewfinder)
