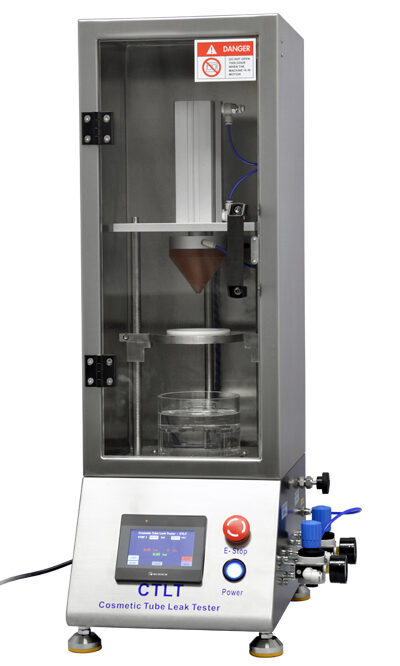

AT2E CTLT Cosmetic Tube Leak Tester is for testing the secure seal performance of the cosmetic tube products. With the special design, use a seal rubber to form a temporary sealed condition from the tube bottom, then apply a certain pressure level to test the secure seal ability of the tube. Controlled by touching display, it’s visual and easy to operate. Adjustable pressure and holding time stage setting meets different test requests of various products. Its stainless-steel frame and enclosed test chamber design makes it resistant of any explosion during the test and ensures the safety of the operator.
Its easy operation provides a simple and convenient solution for customers.
- Sample: Plastic or Metallic tube
- Sample diameter: 25 – 50 mm (other range by order)
- Touch screen display
- Measure range: 0 – 2.00 bar
- Resolution: 0.01 bar
- Unit: bar / Psi
- Stages pressurizing rate adjustable (regulator)
- 2 stages of pressure and holding time setting
- Resistant to explosions
- Stainless steel secured device
- Air supply: 0 – 8 bar
- Power supply: AC 110 – 240 V 50/60 Hz
- Overall size: 340 x 430 x 880 mm (W x D x H)
- Weight: 38 kg
